MDS-300E

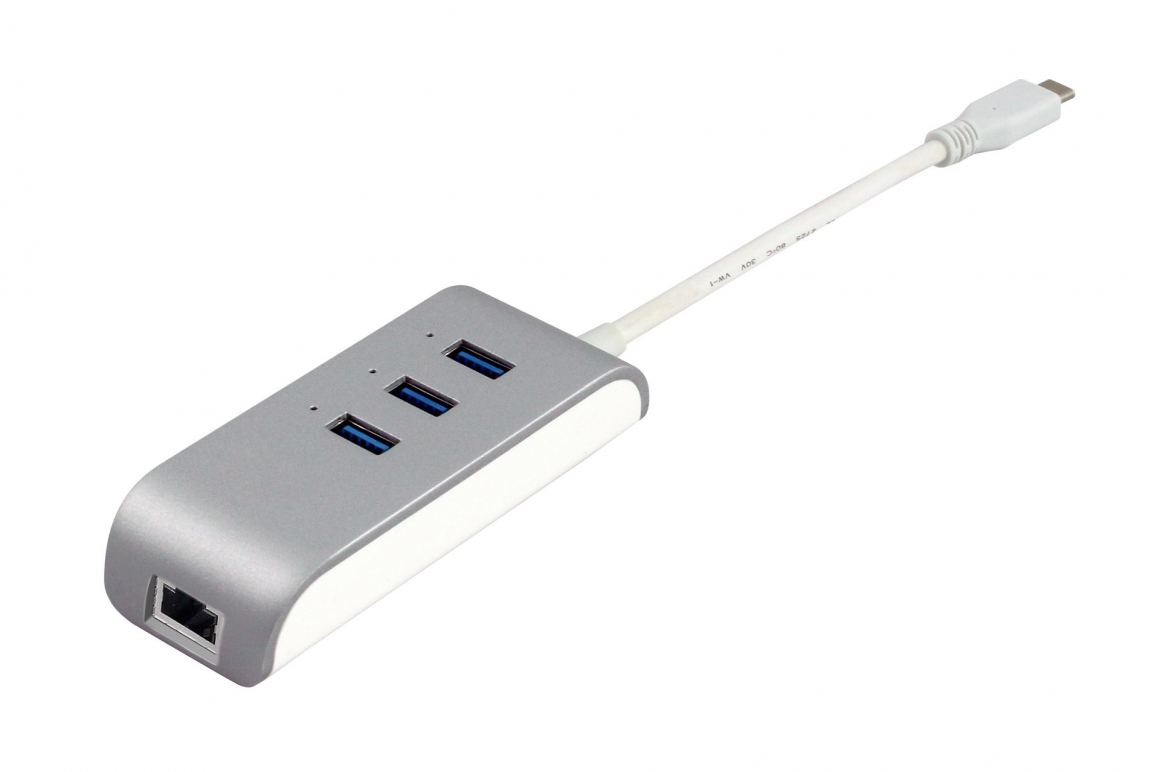

Type C Mini Docking Station
Features:
Easily expands connectivity of your Type-C port
Compliant with the USB 3.1 Gen1 super speed 5Gps specifications
Downstream port support SS, HS, FS and low speed(LS) traffic
Backward compatible to USB specification Revision 2.0/1.1
Enables portable device to charge from VBUS even when the USB bus is in suspend
Support individual over-current detection and reverse current flow blocking for all downstream port
Support LED control function of indicating Downstream Ports transfer activity and over-current condition
10Mbit/100Mbit/1Gbit Ethernet port(OS: Microsoft Windows ® 8/10 or MAC OS X)
Features:
Easily expands connectivity of your Type-C port
Compliant with the USB 3.1 Gen1 super speed 5Gps specifications
Downstream port support SS, HS, FS and low speed(LS) traffic
Backward compatible to USB specification Revision 2.0/1.1
Enables portable device to charge from VBUS even when the USB bus is in suspend
Support individual over-current detection and reverse current flow blocking for all downstream port
Support LED control function of indicating Downstream Ports transfer activity and over-current condition
10Mbit/100Mbit/1Gbit Ethernet port(OS: Microsoft Windows ® 8/10 or MAC OS X)
-
Mechanical Data Weight(g) 103 g Dimension(mm) 41.61 X 104.9 X 21.2 mm Electrical Specifications Compatibility OS 2015 Apple MacBook or later (OS X 10.10 or later)
Windows 10 or later for boot Camp
Mobile tablet PCs with Android 3.0 or laterOutput Port USB 3.1 Gen1 (5Gps) *3 ,
Ethernet : 10Mbit/100Mbit/1GbitEnvironmental Specifications Agency Approvals FCC,CE
