MDS-600

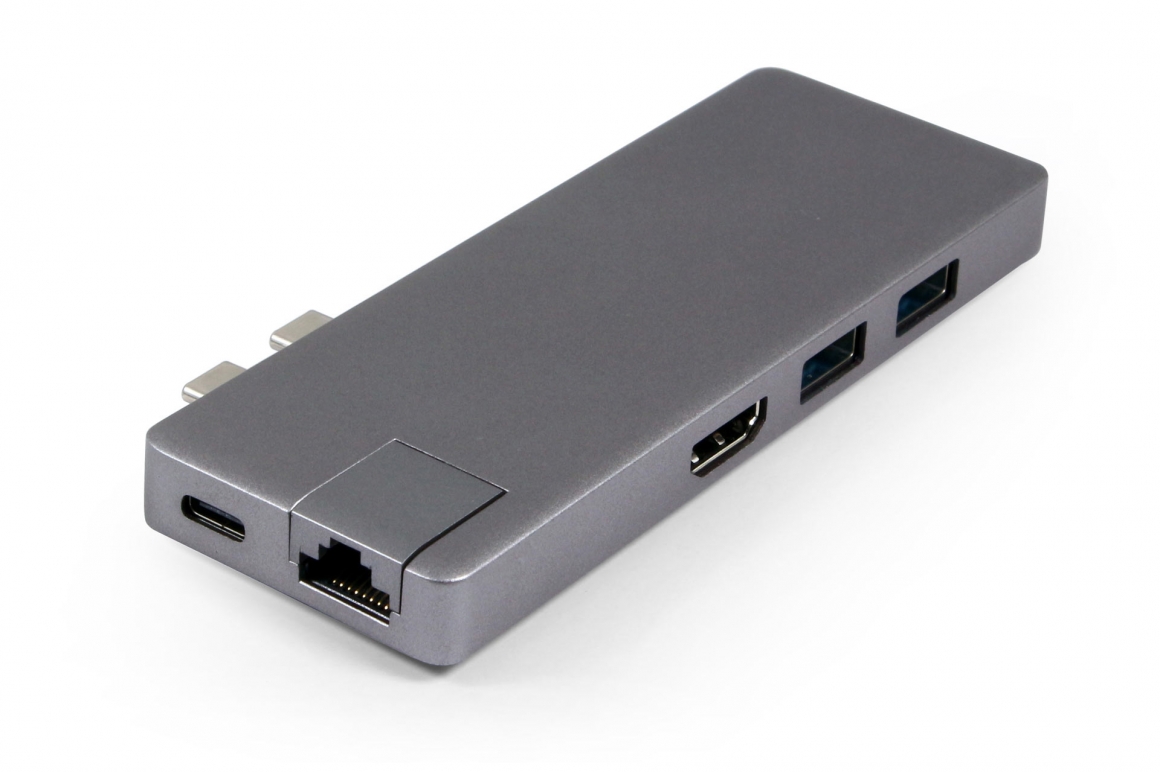

Type C Mini Docking Station
Features:
Type C bypass port. Supports full-featured USB Type-c
Gigabit Ethernet Port supports 10/100/1000 BASE-T Mbps network connection, ideal for streaming movies, downloading large files or playing games
Downstream port compliant with the USB 3.1 Gen1 super speed 5Gb/s specifications
Downstream port support SS, HS, FS and low speed(LS) traffic
Backward compatible to USB specification Revision 2.0/1.1
Enables portable device to charge from VBUS even when the USB bus is in suspend
Support individual over-current detection and reverse current flow blocking for all downstream port
Features:
Type C bypass port. Supports full-featured USB Type-c
Gigabit Ethernet Port supports 10/100/1000 BASE-T Mbps network connection, ideal for streaming movies, downloading large files or playing games
Downstream port compliant with the USB 3.1 Gen1 super speed 5Gb/s specifications
Downstream port support SS, HS, FS and low speed(LS) traffic
Backward compatible to USB specification Revision 2.0/1.1
Enables portable device to charge from VBUS even when the USB bus is in suspend
Support individual over-current detection and reverse current flow blocking for all downstream port
-
Mechanical Data Weight(g) 102 g Dimension(mm) 44 x 120 x 12 mm Electrical Specifications Compatibility OS Apple MacBook Pro 2019/2018/2017/2016
MacBook Air 13” 2019/2018
OS X 10.12 or laterOutput Port HDMI:1080p(1920*1080)@60Hz, 4K(3840*2160)@30Hz
USB-A*2 GEN 1 5Gb/s
Ethernet LAN RJ45 :1Gb/S
Dual card reader slots: microSD and full-size SD card, support SD UHS-I up to 104MB/sEnvironmental Specifications Agency Approvals FCC,CE
