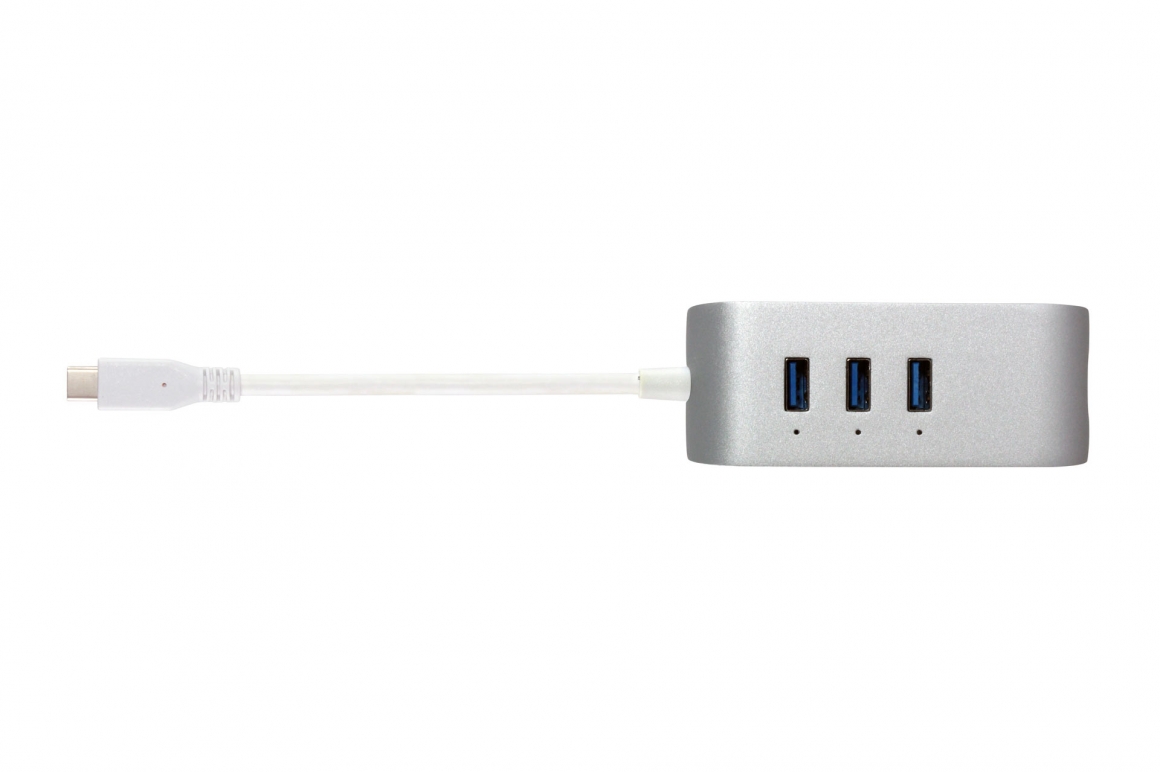

MDS-300H
Type C Mini Docking Station
Features:
Easily expands connectivity of your Type-C port
Downstream port support SS, HS, FS and low speed(LS) traffic
Backward compatible to USB specification Revision 2.0/1.1
Enables portable device to charge from VBUS even when the USB bus is in suspend
Support individual over-current detection and reverse current flow blocking for all downstream port
Support LED control function of indicating Downstream Ports transfer activity and over-current condition
Features:
Easily expands connectivity of your Type-C port
Downstream port support SS, HS, FS and low speed(LS) traffic
Backward compatible to USB specification Revision 2.0/1.1
Enables portable device to charge from VBUS even when the USB bus is in suspend
Support individual over-current detection and reverse current flow blocking for all downstream port
Support LED control function of indicating Downstream Ports transfer activity and over-current condition
-
Mechanical Data Weight(g) 103.4 g Dimension(mm) 42 X 105 X 21.5 mm Electrical Specifications Compatibility OS 2015 Apple MacBook or later
OS X 10.10 or later (Windows 10 or later for boot Camp)Output Port USB 3.1 Gen1 (5Gps) *3 ,
HDMI : 1080p(1920*1080)@60Hz, 4K(3840*2160)@30HzEnvironmental Specifications Agency Approvals FCC,CE
